Kina

About

Kina references the inner shell of the local saltwater sea-urchin called kina in Māori. David saw a kina shell in Antarctica – an exquisite jewel sunk in a tiny hollow in the sea ice. The shell had absorbed enough warmth from the sun to melt the ice around it

Downloads

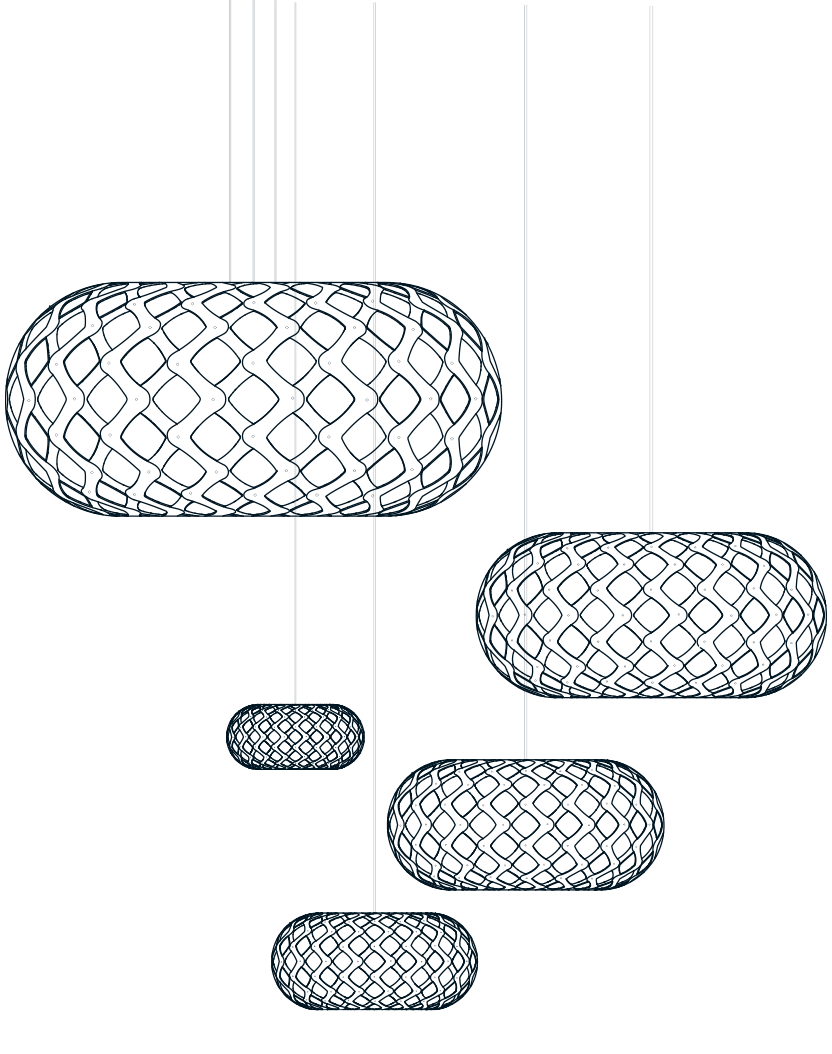

Line Drawings

Assembly Video

Dimensions

440mm (17")

Width: 440mm (17”)

Height: 200mm (8”)

Depth: 440mm (17”)

Weight: 0.5kg (1.1lb)

600mm (24")

Width: 600mm (24”)

Height: 280mm (11”)

Depth: 600mm (24”)

Weight: 0.9kg (2lb)

800mm (31")

Width: 800mm (31”)

Height: 370mm (15”)

Depth: 800mm (31”)

Weight: 1.5kg (3.3lb)

1000mm (39")

Width: 1000mm (39”)

Height: 420mm (17”)

Depth: 1000mm (39”)

Weight: 2.45kg (5.4lb)

1400mm (55")

Width: 1400mm (55”)

Height: 650mm (26”)

Depth: 1400mm (55”)

Weight: 9.2kg (20.3lb)

Packaging

440mm (17")

570mm x 255mm x 50mm (22” x 10” x 2”)

Volume: 0.007m3 (0.3ft3)

Weight: 0.75kg (1.7lb)

600mm (24")

580mm x 235mm x 95mm (23” x 9” x 4”)

Volume: 0.013m3 (0.5ft3)

Weight: 1.5kg (3.3lb)

800mm (31")

470mm x 360mm x 80mm (19” x 14” x 3”)

Volume: 0.014m3 (0.5ft3)

Weight: 2.8kg (6.2lb)

1000mm (39")

540mm x 450mm x 80mm (21” x 18” x 3”)

Volume: 0.019m3 (0.7ft3)

Weight: 3.8kg (8.4lb)

1400mm (55")

710mm x 580mm x 180mm (28” x 23” x 7”)

Volume: 0.074m3 (2.6ft3)

Weight: 9.5kg (20.9lb)

Lamp

440mm (17") = E14 - max. 60W(Not Supplied)

600mm (24") - 1400mm (55") = E27 / (E26 USA) - max. 60W(Not Supplied)

Materials

Bamboo Plywood

Nylon Clips

Finishes

Natural

Caramel

White(one or two sides)

Black one side(inside or outside)

Black two sides

Pink

Blue

Orange

Red

Aqua

Lime

Custom
